城市街景分割数据集下使用对抗网络Pix2Pix根据掩码生成街景¶
作者信息：Liyulingyue
更新日期：2022 年 11 月 18 日
1. 简要介绍¶
关于城市街景分割数据集下使用对抗网络Pix2Pix根据掩码生成街景¶
本项目的目标是，根据分割的伪色彩图生成对应的街道场景。以下图为例，左边是城市街道拍摄图片，右边是分割图片，本项目的目标是根据右图生成左图。
关于GAN¶
GAN（Generative Adversarial Networks, 对抗生成网络）是Ian J. Goodfellow等在2014年提出的一种建立生成模型的框架。在这个框架中，用于刻画目标数据的生成模型（Generative model, 下文简称G）和用于鉴别数据是否真实的鉴别模型（Discriminative model, 下文简称D）被交替训练，最终使得G能够完美刻画目标数据的分布，而D的误判率趋近于1/2。
GAN的训练框架可以描述如下：
1. 抽取一组真实数据
2. 根据随机数，通过G生成假数据
3. 训练鉴别器D
4. 将生成数据输入D，将D的输出和正标签求loss
5. 根据第四步的loss更新G
6. 重复第一到第五步直到收敛
关于Pix2Pix¶
相比于纯粹的生成，Pix2Pix更多的聚焦于风格迁移，简单来说，就是保持数据的整体形状等信息不变。以绘画为例，Pix2Pix做到的事情类似于一个画手，用素描的方式临摹了梵高的油画。因此，Pix2Pix使用的网络为UNet，也可以替换为其他的基于像素的网络。
关于Paddle的梯度计算¶
Paddle动态图模式梯度计算是自动累加模式。因此，在运行GAN（对抗生成网络）的时候，可以多个batch/多个模块的loss单独进行backward，但也需要需要注意清除梯度和阻断方向传播。
关于梯度累加和阻断方向传播的介绍如下：
梯度累加：梯度累加是指在模型训练过程中，训练一个 batch 的数据得到梯度后，不立即用该梯度更新模型参数，而是继续下一个 batch 数据的训练，得到梯度后继续循环，多次循环后梯度不断累加，直至达到一定次数后，用累加的梯度更新参数，这样可以起到变相扩大 batch_size 的作用。受限于显存大小，可能无法开到更大的 batch_size，使用梯度累加可以实现增大 batch_size 的作用。动态图模式天然支持梯度累加，即只要不调用梯度清零 clear_grad 方法，动态图的梯度会一直累积。
阻断反向传播：在一些任务中，只希望拿到正向预测的值，但是不希望更新参数，或者在反向的时候剪枝，减少计算量，阻断反向的传播，即可使用
paddle.Tensor.detach()产生一个新的、和当前计算图分离的，但是拥有当前变量内容的临时变量。
2. 环境设置¶
导入包，主要包括paddle和一些画图辅助，如plt
import os
import random
import paddle
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation
import cv2
# 输出Paddle版本
print(paddle.__version__)
2.3.2
3. 数据集¶
首先，准备数据集，这里直接下载PaddleSeg准备好的数据集。
! wget https://paddleseg.bj.bcebos.com/dataset/cityscapes.tar
! tar -xf cityscapes.tar

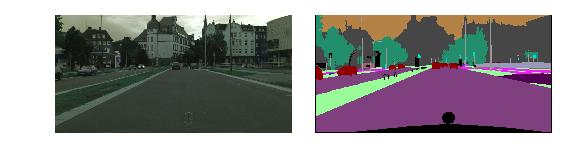

查看图片内容
plt.subplot(1, 2, 1)
img = cv2.imread('cityscapes/leftImg8bit/train/aachen/aachen_000001_000019_leftImg8bit.png')
plt.imshow(img)
plt.axis('off')
plt.subplot(1, 2, 2)
img = cv2.imread('cityscapes/gtFine/train/aachen/aachen_000001_000019_gtFine_color.png')
plt.imshow(img)
plt.axis('off')
plt.xticks([])
plt.yticks([])
plt.subplots_adjust(wspace=0.1, hspace=0.1)
依赖于cityscapes/train.list，构造一个数据读取器
import paddle
import os
class MyDateset(paddle.io.Dataset):
def __init__(self, root_dir = 'cityscapes', txt_dir = 'cityscapes/train.list'):
super(MyDateset, self).__init__()
self.root_dir = root_dir
with open(txt_dir,'r') as f:
self.file_list = f.readlines()
def __getitem__(self, index):
file_dir = self.file_list[index][:-1]
img_dir,mask_dir = file_dir.split(' ')
mask_dir = mask_dir.replace('_labelTrainIds.png','_color.png')
img = cv2.imread(os.path.join(self.root_dir,img_dir))
img = cv2.resize(img, (512, 256)) # （宽，高）
img = img/255
img = img.transpose([2,0,1])
img = paddle.to_tensor(img).astype('float32')
mask = cv2.imread(os.path.join(self.root_dir,mask_dir))
mask = cv2.resize(mask, (512, 256)) # （宽，高）
mask = mask/255
mask = mask.transpose([2,0,1])
mask = paddle.to_tensor(mask).astype('float32')
return img, mask
def __len__(self):
return len(self.file_list)
if 1:
dataset=MyDateset()
dataloader = paddle.io.DataLoader(
dataset,
batch_size=16,
shuffle=True,
drop_last=False)
for step, data in enumerate(dataloader):
img, mask = data
print(step, img.shape, mask.shape)
break
0 [16, 3, 256, 512] [16, 3, 256, 512]
4. 模型组网¶
Pix2Pix需要使用UNet形式的构造生成器。
UNet网络的具体介绍请参考论文U-Net: Convolutional Networks for Biomedical Image Segmentation。
鉴别器由一组卷积模块构成，用于判断输入的两张图片是否分别对应mask（分割后的图片）和街道场景。
# Generator Code
class UnetGenerator(paddle.nn.Layer):
def __init__(self, input_nc=3, output_nc=3, ngf=64):
super(UnetGenerator, self).__init__()
self.down1 = paddle.nn.Conv2D(input_nc, ngf, kernel_size=4, stride=2, padding=1)
self.down2 = Downsample(ngf, ngf*2)
self.down3 = Downsample(ngf*2, ngf*4)
self.down4 = Downsample(ngf*4, ngf*8)
self.down5 = Downsample(ngf*8, ngf*8)
self.down6 = Downsample(ngf*8, ngf*8)
self.down7 = Downsample(ngf*8, ngf*8)
self.center = Downsample(ngf*8, ngf*8)
self.up7 = Upsample(ngf*8, ngf*8, use_dropout=True)
self.up6 = Upsample(ngf*8*2, ngf*8, use_dropout=True)
self.up5 = Upsample(ngf*8*2, ngf*8, use_dropout=True)
self.up4 = Upsample(ngf*8*2, ngf*8)
self.up3 = Upsample(ngf*8*2, ngf*4)
self.up2 = Upsample(ngf*4*2, ngf*2)
self.up1 = Upsample(ngf*2*2, ngf)
self.output_block = paddle.nn.Sequential(
paddle.nn.ReLU(),
paddle.nn.Conv2DTranspose(ngf*2, output_nc, kernel_size=4, stride=2, padding=1),
paddle.nn.Tanh()
)
def forward(self, x):
d1 = self.down1(x)
d2 = self.down2(d1)
d3 = self.down3(d2)
d4 = self.down4(d3)
d5 = self.down5(d4)
d6 = self.down6(d5)
d7 = self.down7(d6)
c = self.center(d7)
x = self.up7(c, d7)
x = self.up6(x, d6)
x = self.up5(x, d5)
x = self.up4(x, d4)
x = self.up3(x, d3)
x = self.up2(x, d2)
x = self.up1(x, d1)
x = self.output_block(x)
return x
class Downsample(paddle.nn.Layer):
# LeakyReLU => conv => batch norm
def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1):
super(Downsample, self).__init__()
self.layers = paddle.nn.Sequential(
paddle.nn.LeakyReLU(0.2),
paddle.nn.Conv2D(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
paddle.nn.BatchNorm2D(out_dim)
)
def forward(self, x):
x = self.layers(x)
return x
class Upsample(paddle.nn.Layer):
# ReLU => deconv => batch norm => dropout
def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1, use_dropout=False):
super(Upsample, self).__init__()
sequence = [
paddle.nn.ReLU(),
paddle.nn.Conv2DTranspose(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
paddle.nn.BatchNorm2D(out_dim)
]
if use_dropout:
sequence.append(paddle.nn.Dropout(p=0.5))
self.layers = paddle.nn.Sequential(*sequence)
def forward(self, x, skip):
x = self.layers(x)
x = paddle.concat([x, skip], axis=1)
return x
# 通过paddle.summary可以查看一个指定形状的数据在网络中各个模块中的传递
paddle.summary(UnetGenerator(), (8, 3, 256, 512))
-----------------------------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
===============================================================================================
Conv2D-1 [[8, 3, 256, 512]] [8, 64, 128, 256] 3,136
LeakyReLU-1 [[8, 64, 128, 256]] [8, 64, 128, 256] 0
Conv2D-2 [[8, 64, 128, 256]] [8, 128, 64, 128] 131,072
BatchNorm2D-1 [[8, 128, 64, 128]] [8, 128, 64, 128] 512
Downsample-1 [[8, 64, 128, 256]] [8, 128, 64, 128] 0
LeakyReLU-2 [[8, 128, 64, 128]] [8, 128, 64, 128] 0
Conv2D-3 [[8, 128, 64, 128]] [8, 256, 32, 64] 524,288
BatchNorm2D-2 [[8, 256, 32, 64]] [8, 256, 32, 64] 1,024
Downsample-2 [[8, 128, 64, 128]] [8, 256, 32, 64] 0
LeakyReLU-3 [[8, 256, 32, 64]] [8, 256, 32, 64] 0
Conv2D-4 [[8, 256, 32, 64]] [8, 512, 16, 32] 2,097,152
BatchNorm2D-3 [[8, 512, 16, 32]] [8, 512, 16, 32] 2,048
Downsample-3 [[8, 256, 32, 64]] [8, 512, 16, 32] 0
LeakyReLU-4 [[8, 512, 16, 32]] [8, 512, 16, 32] 0
Conv2D-5 [[8, 512, 16, 32]] [8, 512, 8, 16] 4,194,304
BatchNorm2D-4 [[8, 512, 8, 16]] [8, 512, 8, 16] 2,048
Downsample-4 [[8, 512, 16, 32]] [8, 512, 8, 16] 0
LeakyReLU-5 [[8, 512, 8, 16]] [8, 512, 8, 16] 0
Conv2D-6 [[8, 512, 8, 16]] [8, 512, 4, 8] 4,194,304
BatchNorm2D-5 [[8, 512, 4, 8]] [8, 512, 4, 8] 2,048
Downsample-5 [[8, 512, 8, 16]] [8, 512, 4, 8] 0
LeakyReLU-6 [[8, 512, 4, 8]] [8, 512, 4, 8] 0
Conv2D-7 [[8, 512, 4, 8]] [8, 512, 2, 4] 4,194,304
BatchNorm2D-6 [[8, 512, 2, 4]] [8, 512, 2, 4] 2,048
Downsample-6 [[8, 512, 4, 8]] [8, 512, 2, 4] 0
LeakyReLU-7 [[8, 512, 2, 4]] [8, 512, 2, 4] 0
Conv2D-8 [[8, 512, 2, 4]] [8, 512, 1, 2] 4,194,304
BatchNorm2D-7 [[8, 512, 1, 2]] [8, 512, 1, 2] 2,048
Downsample-7 [[8, 512, 2, 4]] [8, 512, 1, 2] 0
ReLU-1 [[8, 512, 1, 2]] [8, 512, 1, 2] 0
Conv2DTranspose-1 [[8, 512, 1, 2]] [8, 512, 2, 4] 4,194,304
BatchNorm2D-8 [[8, 512, 2, 4]] [8, 512, 2, 4] 2,048
Dropout-1 [[8, 512, 2, 4]] [8, 512, 2, 4] 0
Upsample-1 [[8, 512, 1, 2], [8, 512, 2, 4]] [8, 1024, 2, 4] 0
ReLU-2 [[8, 1024, 2, 4]] [8, 1024, 2, 4] 0
Conv2DTranspose-2 [[8, 1024, 2, 4]] [8, 512, 4, 8] 8,388,608
BatchNorm2D-9 [[8, 512, 4, 8]] [8, 512, 4, 8] 2,048
Dropout-2 [[8, 512, 4, 8]] [8, 512, 4, 8] 0
Upsample-2 [[8, 1024, 2, 4], [8, 512, 4, 8]] [8, 1024, 4, 8] 0
ReLU-3 [[8, 1024, 4, 8]] [8, 1024, 4, 8] 0
Conv2DTranspose-3 [[8, 1024, 4, 8]] [8, 512, 8, 16] 8,388,608
BatchNorm2D-10 [[8, 512, 8, 16]] [8, 512, 8, 16] 2,048
Dropout-3 [[8, 512, 8, 16]] [8, 512, 8, 16] 0
Upsample-3 [[8, 1024, 4, 8], [8, 512, 8, 16]] [8, 1024, 8, 16] 0
ReLU-4 [[8, 1024, 8, 16]] [8, 1024, 8, 16] 0
Conv2DTranspose-4 [[8, 1024, 8, 16]] [8, 512, 16, 32] 8,388,608
BatchNorm2D-11 [[8, 512, 16, 32]] [8, 512, 16, 32] 2,048
Upsample-4 [[8, 1024, 8, 16], [8, 512, 16, 32]] [8, 1024, 16, 32] 0
ReLU-5 [[8, 1024, 16, 32]] [8, 1024, 16, 32] 0
Conv2DTranspose-5 [[8, 1024, 16, 32]] [8, 256, 32, 64] 4,194,304
BatchNorm2D-12 [[8, 256, 32, 64]] [8, 256, 32, 64] 1,024
Upsample-5 [[8, 1024, 16, 32], [8, 256, 32, 64]] [8, 512, 32, 64] 0
ReLU-6 [[8, 512, 32, 64]] [8, 512, 32, 64] 0
Conv2DTranspose-6 [[8, 512, 32, 64]] [8, 128, 64, 128] 1,048,576
BatchNorm2D-13 [[8, 128, 64, 128]] [8, 128, 64, 128] 512
Upsample-6 [[8, 512, 32, 64], [8, 128, 64, 128]] [8, 256, 64, 128] 0
ReLU-7 [[8, 256, 64, 128]] [8, 256, 64, 128] 0
Conv2DTranspose-7 [[8, 256, 64, 128]] [8, 64, 128, 256] 262,144
BatchNorm2D-14 [[8, 64, 128, 256]] [8, 64, 128, 256] 256
Upsample-7 [[8, 256, 64, 128], [8, 64, 128, 256]] [8, 128, 128, 256] 0
ReLU-8 [[8, 128, 128, 256]] [8, 128, 128, 256] 0
Conv2DTranspose-8 [[8, 128, 128, 256]] [8, 3, 256, 512] 6,147
Tanh-1 [[8, 3, 256, 512]] [8, 3, 256, 512] 0
===============================================================================================
Total params: 54,425,923
Trainable params: 54,404,163
Non-trainable params: 21,760
-----------------------------------------------------------------------------------------------
Input size (MB): 12.00
Forward/backward pass size (MB): 2250.00
Params size (MB): 207.62
Estimated Total Size (MB): 2469.62
-----------------------------------------------------------------------------------------------
{'total_params': 54425923, 'trainable_params': 54404163}
# Discriminator Code
class NLayerDiscriminator(paddle.nn.Layer):
def __init__(self, input_nc=6, ndf=64):
super(NLayerDiscriminator, self).__init__()
self.layers = paddle.nn.Sequential(
paddle.nn.Conv2D(input_nc, ndf, kernel_size=4, stride=2, padding=1),
paddle.nn.LeakyReLU(0.2),
ConvBlock(ndf, ndf*2),
ConvBlock(ndf*2, ndf*4),
ConvBlock(ndf*4, ndf*8, stride=1),
paddle.nn.Conv2D(ndf*8, 1, kernel_size=4, stride=1, padding=1),
paddle.nn.Sigmoid()
)
def forward(self, input):
return self.layers(input)
class ConvBlock(paddle.nn.Layer):
# conv => batch norm => LeakyReLU
def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1):
super(ConvBlock, self).__init__()
self.layers = paddle.nn.Sequential(
paddle.nn.Conv2D(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
paddle.nn.BatchNorm2D(out_dim),
paddle.nn.LeakyReLU(0.2)
)
def forward(self, x):
x = self.layers(x)
return x
# 通过paddle.summary可以查看一个指定形状的数据在网络中各个模块中的传递
paddle.summary(NLayerDiscriminator(), (16, 6, 256, 512))
---------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
===========================================================================
Conv2D-9 [[16, 6, 256, 512]] [16, 64, 128, 256] 6,208
LeakyReLU-8 [[16, 64, 128, 256]] [16, 64, 128, 256] 0
Conv2D-10 [[16, 64, 128, 256]] [16, 128, 64, 128] 131,072
BatchNorm2D-15 [[16, 128, 64, 128]] [16, 128, 64, 128] 512
LeakyReLU-9 [[16, 128, 64, 128]] [16, 128, 64, 128] 0
ConvBlock-1 [[16, 64, 128, 256]] [16, 128, 64, 128] 0
Conv2D-11 [[16, 128, 64, 128]] [16, 256, 32, 64] 524,288
BatchNorm2D-16 [[16, 256, 32, 64]] [16, 256, 32, 64] 1,024
LeakyReLU-10 [[16, 256, 32, 64]] [16, 256, 32, 64] 0
ConvBlock-2 [[16, 128, 64, 128]] [16, 256, 32, 64] 0
Conv2D-12 [[16, 256, 32, 64]] [16, 512, 31, 63] 2,097,152
BatchNorm2D-17 [[16, 512, 31, 63]] [16, 512, 31, 63] 2,048
LeakyReLU-11 [[16, 512, 31, 63]] [16, 512, 31, 63] 0
ConvBlock-3 [[16, 256, 32, 64]] [16, 512, 31, 63] 0
Conv2D-13 [[16, 512, 31, 63]] [16, 1, 30, 62] 8,193
Sigmoid-1 [[16, 1, 30, 62]] [16, 1, 30, 62] 0
===========================================================================
Total params: 2,770,497
Trainable params: 2,766,913
Non-trainable params: 3,584
---------------------------------------------------------------------------
Input size (MB): 48.00
Forward/backward pass size (MB): 1768.70
Params size (MB): 10.57
Estimated Total Size (MB): 1827.27
---------------------------------------------------------------------------
{'total_params': 2770497, 'trainable_params': 2766913}
5. 模型训练¶
本项目的训练参数配置如下：

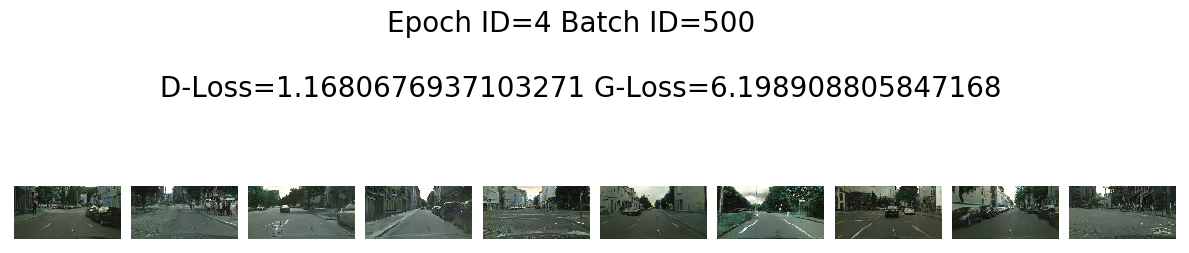

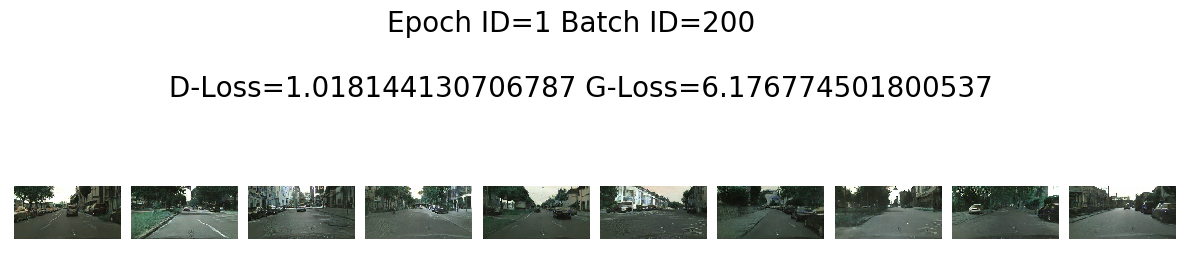

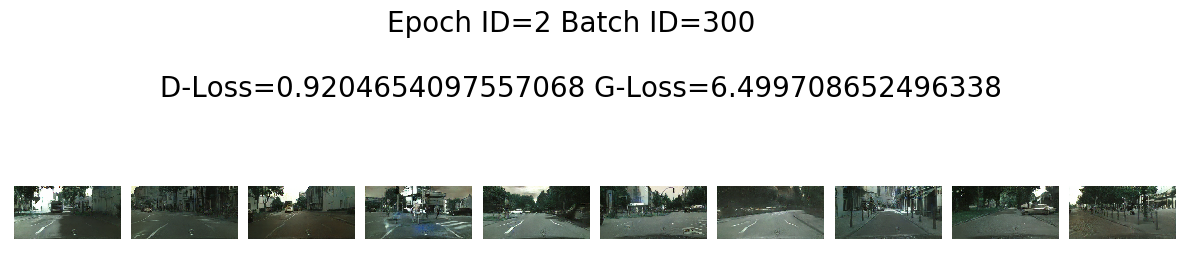

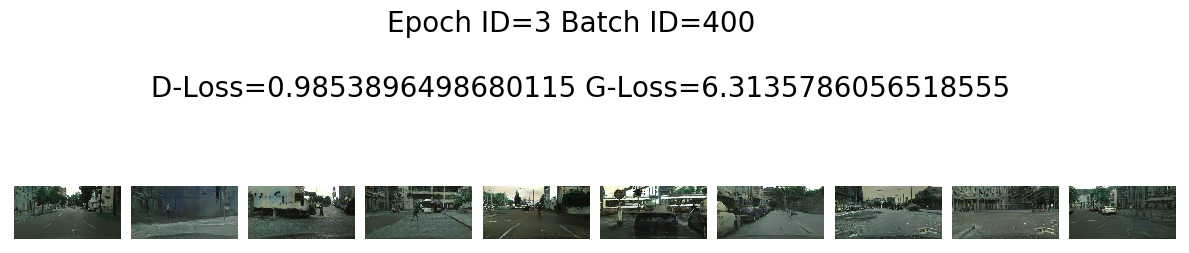

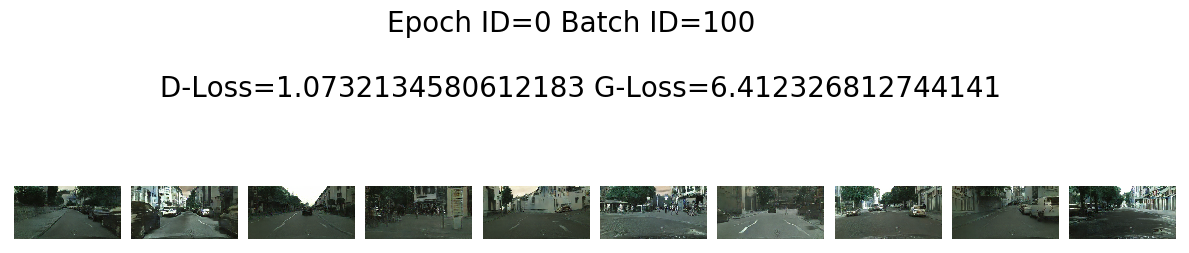

下述程序大约需要运行六个小时。
# create Net
netG = UnetGenerator()
netD = NLayerDiscriminator()
# 如果想要接着之前训练的模型训练，将if 0修改为if 1即可
if 1:
try:
mydict = paddle.load('generator.params')
netG.set_dict(mydict)
mydict = paddle.load('discriminator.params')
netD.set_dict(mydict)
except:
print('fail to load model')
netG.train()
netD.train()
optimizerD = paddle.optimizer.Adam(parameters=netD.parameters(), learning_rate=0.00002, beta1=0.5, beta2=0.999)
optimizerG = paddle.optimizer.Adam(parameters=netG.parameters(), learning_rate=0.00002, beta1=0.5, beta2=0.999)
bce_loss = paddle.nn.BCELoss()
l1_loss = paddle.nn.L1Loss()
# 最大迭代epoch
max_epoch = 30
now_step = 0
for epoch in range(max_epoch):
for step, (img, mask) in enumerate(dataloader):
############################
# (1) Update D network: maximize log(D(x)) + log(1 - D(G(z)))
###########################
# 清除D的梯度
optimizerD.clear_grad()
# 传入正样本，并更新梯度
pos_img = paddle.concat((img, mask), 1)
# label = paddle.full([pos_img.shape[0], 1], 1, dtype='float32')
pre = netD(pos_img)
loss_D_1 = bce_loss(pre, paddle.ones_like(pre))
loss_D_1.backward()
# 通过randn构造随机数，制造负样本，并传入D，更新梯度
fake_img = netG(mask).detach()
neg_img = paddle.concat((fake_img, mask), 1)
# label = paddle.full([pos_img.shape[0], 1], 0, dtype='float32')
pre = netD(neg_img.detach()) # 通过detach阻断网络梯度传播，不影响G的梯度计算
loss_D_2 = bce_loss(pre, paddle.zeros_like(pre))
loss_D_2.backward()
# 更新D网络参数
optimizerD.step()
optimizerD.clear_grad()
loss_D = loss_D_1 + loss_D_2
############################
# (2) Update G network: maximize log(D(G(z)))
###########################
# 清除D的梯度
optimizerG.clear_grad()
fake_img = netG(mask)
fake = paddle.concat((fake_img, mask), 1)
# label = paddle.full((pos_img.shape[0], 1), 1, dtype=np.float32,)
output = netD(fake)
loss_G_1 = l1_loss(fake_img, img) * 100.
loss_G_2 = bce_loss(output, paddle.ones_like(pre))
loss_G = loss_G_1+loss_G_2
loss_G.backward()
# 更新G网络参数
optimizerG.step()
optimizerG.clear_grad()
now_step += 1
print('\r now_step is:', now_step,end = '')
###########################
# 可视化
###########################
if now_step % 100 == 0:
print()
plt.figure(figsize=(15,15))
try:
for i in range(10):
# image = generated_image[i].transpose()
image = fake_img[i]
image = np.where(image > 0, image, 0)
image = image.transpose((1,2,0))
plt.subplot(10, 10, i + 1)
plt.imshow(image)
plt.axis('off')
plt.xticks([])
plt.yticks([])
plt.subplots_adjust(wspace=0.1, hspace=0.1)
msg = 'Epoch ID={0} Batch ID={1} \n\n D-Loss={2} G-Loss={3}'.format(epoch, now_step, loss_D.numpy()[0], loss_G.numpy()[0])
print(msg)
plt.suptitle(msg,fontsize=20)
plt.draw()
# 保存在work文件夹下
plt.savefig('{}/{:04d}_{:04d}.png'.format('work', epoch, now_step), bbox_inches='tight')
plt.pause(0.01)
break
except IOError:
print(IOError)
paddle.save(netG.state_dict(), "generator.params")
paddle.save(netD.state_dict(), "discriminator.params")
now_step is: 100
Epoch ID=0 Batch ID=100
D-Loss=1.0732134580612183 G-Loss=6.412326812744141
now_step is: 200
Epoch ID=1 Batch ID=200
D-Loss=1.018144130706787 G-Loss=6.176774501800537
now_step is: 300
Epoch ID=2 Batch ID=300
D-Loss=0.9204654097557068 G-Loss=6.499708652496338
now_step is: 400
Epoch ID=3 Batch ID=400
D-Loss=0.9853896498680115 G-Loss=6.3135786056518555
now_step is: 500
Epoch ID=4 Batch ID=500
D-Loss=1.1680676937103271 G-Loss=6.198908805847168
6. 模型预测¶

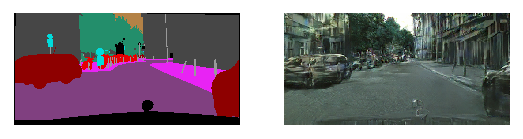

通过下述代码即可调用刚刚训练好的生成器。
# 读取模型
netG = UnetGenerator()
mydict = paddle.load('generator.params')
netG.set_dict(mydict)
netG.eval()
# 读取分割图片
mask = cv2.imread('test.png')
h, w, c = mask.shape
# 绘制
plt.subplot(1, 2, 1)
plt.imshow(mask)
plt.axis('off')
plt.xticks([])
plt.yticks([])
# 预处理
mask = cv2.resize(mask, (512, 256)) # （宽，高）
mask = mask/255
mask = mask.transpose([2,0,1])
mask = paddle.to_tensor(mask).astype('float32')
mask = mask.reshape([1]+mask.shape)
# 将推理结果转化为图片
img = netG(mask)
img = img.numpy()[0]
img[img<0] = 0
img = (img*255).astype('uint8')
img = img.transpose((1,2,0))
# 绘制
plt.subplot(1, 2, 2)
plt.imshow(img)
plt.axis('off')
plt.xticks([])
plt.yticks([])
# 保存
cv2.imwrite('result.jpg',img)
img = cv2.resize(img, (w, h)) # （宽，高）
cv2.imwrite('result_samesize.jpg',img)
True
7. 结语¶
本文简单跑通了Pix2Pix的流程，如果对网络有更高的性能需求可以参考致谢处的两个参考链接，内容类似，但是会更为详实。
