基于Transformer实现英语到西班牙语的翻译任务 ¶

# 自行下载数据集

from paddle.utils.download import get_path_from_url

URL = "http://storage.googleapis.com/download.tensorflow.org/data/spa-eng.zip"
get_path_from_url(URL, "./data")
text_file = "data/spa-eng/spa.txt"  # 数据集路径

# #使用我们提供的数据集

# text_file='data/data173968/spa.txt' # 数据集路径

with open(text_file) as f:
    lines = f.read().split("\n")[:-1]
text_pairs = []
for line in lines:
    eng, spa = line.split("\t")
    spa = "[start] " + spa + " [end]"
    text_pairs.append((eng, spa))

for _ in range(5):
    print(random.choice(text_pairs))

('We got married.', '[start] Nos hemos casado. [end]')
('Are you in Boston now?', '[start] ¿Estás ahora en Boston? [end]')
('He should arrive at the airport by 9 a.m.', '[start] Él debiera estar llegando aeropuesto cerca de las nueve de la mañana. [end]')
('What a country!', '[start] ¡Qué país! [end]')
("I can't believe you're trying to bribe me.", '[start] No me puedo creer que estés tratando de sobornarme. [end]')

random.shuffle(text_pairs)
num_val_samples = int(0.1 * len(text_pairs))
num_train_samples = len(text_pairs) - 2 * num_val_samples
train_pairs = text_pairs[:num_train_samples]
val_pairs = text_pairs[num_train_samples : num_train_samples + num_val_samples]
test_pairs = text_pairs[num_train_samples + num_val_samples :]

print(f"{len(text_pairs)} total pairs")
print(f"{len(train_pairs)} training pairs")
print(f"{len(val_pairs)} validation pairs")
print(f"{len(test_pairs)} test pairs")

118964 total pairs
95172 training pairs
11896 validation pairs
11896 test pairs

train_eng_texts = [pair[0] for pair in train_pairs]
train_spa_texts = [pair[1] for pair in train_pairs]

val_eng_texts = [pair[0] for pair in val_pairs]
val_spa_texts = [pair[1] for pair in val_pairs]

test_eng_texts = [pair[0] for pair in test_pairs]
test_spa_texts = [pair[1] for pair in test_pairs]

def pre_process(datas, save_punctuation=False):
    dataset = []
    # 定义标点符号集合

    strip_chars = string.punctuation + "¿¡"
    strip_chars = strip_chars.replace("[", "")
    strip_chars = strip_chars.replace("]", "")

    for i in range(len(datas)):
        lowercase = datas[i].lower()  # 全部转为小写

        out = ""
        if save_punctuation:
            # 在标点符号之前加空格，需注意有特殊情况
            for low in lowercase:
                if low in strip_chars:
                    if (
                        low == "¿" or low == "¡"
                    ):  # 分别表示西班牙语的反问号、反叹号
                        out += low + " "
                    else:
                        out += " " + low
                else:
                    out += low
        else:
            # 也可以选择删除除所有的标点
            for low in lowercase:
                if low not in strip_chars:
                    out += low

        dataset.append(out)
    return dataset

train_eng_texts_pre = pre_process(train_eng_texts)
train_spa_texts_pre = pre_process(train_spa_texts)

val_eng_texts_pre = pre_process(val_eng_texts)
val_spa_texts_pre = pre_process(val_spa_texts)

test_eng_texts_pre = pre_process(test_eng_texts)
test_spa_texts_pre = pre_process(test_spa_texts)

print("预处理结果展示：")
print("英语：标准化处理之前：", train_eng_texts[0])
print("英语：标准化处理之后：", train_eng_texts_pre[0])

print("西班牙语：标准化处理之前：", train_spa_texts[0])
print("西班牙语：标准化处理之后：", train_spa_texts_pre[0])

预处理结果展示：
英语：标准化处理之前： I can't let you.
英语：标准化处理之后： i cant let you
西班牙语：标准化处理之前： [start] No te lo puedo permitir. [end]
西班牙语：标准化处理之后： [start] no te lo puedo permitir [end]

def build_cropus(data):
    crpous = []
    for i in range(len(data)):
        cr = data[i].strip().lower()
        cr = cr.split()
        crpous.extend(cr)
    return crpous

eng_crpous = build_cropus(train_eng_texts_pre)
spa_crpous = build_cropus(train_spa_texts_pre)

print(eng_crpous[:3])
print(spa_crpous[:3])

['i', 'cant', 'let']
['[start]', 'no', 'te']

def build_dict(corpus, vocab_size):
    # 1.首先统计每个不同词的频率（出现的次数），使用一个词典记录
    word_freq_dict = dict()
    for word in corpus:
        if word not in word_freq_dict:
            word_freq_dict[word] = 0
        word_freq_dict[word] += 1

    # 2.将词典中的词，按照出现次数排序，出现次数越高，排序越靠前
    word_freq_dict = sorted(
        word_freq_dict.items(), key=lambda x: x[1], reverse=True
    )

    # 3.构造2个不同的词典
    # 每个词到id的映射关系：word2id_dict
    # 每个id到词的映射关系：id2word_dict
    word2id_dict = {"<pad>": 0, "<unk>": 1}
    id2word_dict = {0: "<pad>", 1: "<unk>"}

    # 4.按照频率，从高到低，开始遍历每个单词，并为这个单词构造一个独一无二的id
    i = 2
    for word, freq in word_freq_dict:
        if i < vocab_size:
            word2id_dict[word] = i
            id2word_dict[i] = word
            i += 1
        else:  # 超过指定的词汇量，指向<unk>
            word2id_dict[word] = 1
    return word2id_dict, id2word_dict

vocab_size = 25000  # 共享词汇量上限
eng2id_dict, id2eng_dict = build_dict(eng_crpous, vocab_size)
spa2id_dict, id2spa_dict = build_dict(spa_crpous, vocab_size)

print(
    "我们设置的英语总词汇上限为：",
    vocab_size,
    "\t总的英语词汇量为：",
    len(eng2id_dict),
    "\t我们实际使用的英语词汇量为",
    len(id2eng_dict),
)
print(
    "我们设置的西班牙语总词汇上限为：",
    vocab_size,
    "\t总的西班牙语词汇量为：",
    len(spa2id_dict),
    "\t我们实际使用的西班牙语词汇量为",
    len(id2spa_dict),
)

我们设置的英语总词汇上限为： 25000 	总的英语词汇量为： 12605 	我们实际使用的英语词汇量为 12605
我们设置的西班牙语总词汇上限为： 25000 	总的西班牙语词汇量为： 23724 	我们实际使用的西班牙语词汇量为 23724

def build_tensor(data, dicta, maxlen):
    tensor = []
    for i in range(len(data)):
        subtensor = []
        lista = data[i].split()
        for j in range(len(lista)):
            index = dicta.get(lista[j])
            # 对于训练解和测试集，可能会出现未在词表中的词汇，此时index会返回None,此时我们指定index=1,即指向<unk>
            if index == None:
                index = 1
            subtensor.append(index)

        if len(subtensor) < maxlen:
            # 0是我们进行padding的向量值
            subtensor += [0] * (maxlen - len(subtensor))
        else:
            subtensor = subtensor[:maxlen]

        tensor.append(subtensor)
    return np.array(tensor)

sequence_length = (

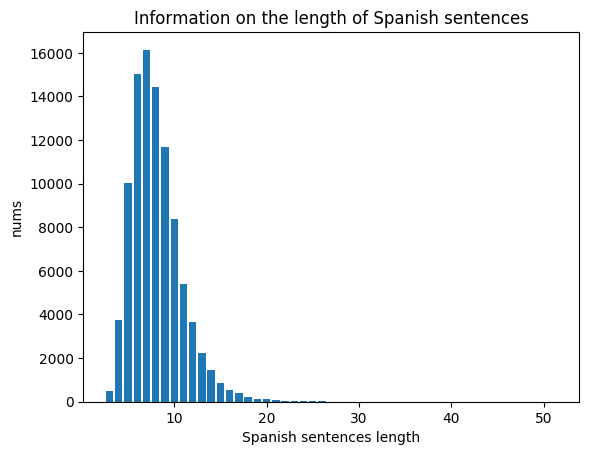

    20  # 语句长度我们统一设置为20，可以依据3.5小结的统计信息分开设置
)

train_eng_tensor = build_tensor(
    train_eng_texts_pre, eng2id_dict, sequence_length
)
val_eng_tensor = build_tensor(val_eng_texts_pre, eng2id_dict, sequence_length)
test_eng_tensor = build_tensor(test_eng_texts_pre, eng2id_dict, sequence_length)

train_spa_tensor = build_tensor(
    train_spa_texts_pre, spa2id_dict, sequence_length
)
val_spa_tensor = build_tensor(val_spa_texts_pre, spa2id_dict, sequence_length)
test_spa_tensor = build_tensor(test_spa_texts_pre, spa2id_dict, sequence_length)

print(val_eng_texts_pre[0])
print(val_eng_tensor[0])

there were three women standing at the bar
[  47   53  149  632  931   36    2 1936    0    0    0    0    0    0
    0    0    0    0    0    0]

class MyDataset(Dataset):
    """
    步骤一：继承paddle.io.Dataset类
    """

    def __init__(self, eng, spa):
        """
        步骤二：实现构造函数，定义数据集大小
        """
        super(MyDataset, self).__init__()
        self.eng = eng
        self.spa = spa

    def __getitem__(self, index):
        """
        步骤三：实现__getitem__方法，定义指定index时如何获取数据，并返回单条数据（训练数据，对应的标签）
        """
        return self.eng[index], self.spa[index]

    def __len__(self):
        """
        步骤四：实现__len__方法，返回数据集总数目
        """
        return self.eng.shape[0]

def prepare_input(inputs, padid=0):
    src = np.array([inputsub[0] for inputsub in inputs])
    trg = np.array([inputsub[1] for inputsub in inputs])
    trg_mask = (trg[:, :-1] != padid).astype(paddle.get_default_dtype())
    return src, trg[:, :-1], trg[:, 1:, np.newaxis], trg_mask

BATCH_SIZE = 64

train_dataset = MyDataset(train_eng_tensor, train_spa_tensor)
train_loader = paddle.io.DataLoader(
    train_dataset,
    batch_size=BATCH_SIZE,
    shuffle=True,
    drop_last=True,
    collate_fn=partial(prepare_input),
)

val_dataset = MyDataset(val_eng_tensor, val_spa_tensor)
val_loader = paddle.io.DataLoader(
    val_dataset,
    batch_size=BATCH_SIZE,
    shuffle=True,
    drop_last=True,
    collate_fn=partial(prepare_input),
)

test_dataset = MyDataset(test_eng_tensor, test_spa_tensor)
test_loader = paddle.io.DataLoader(
    test_dataset,
    batch_size=BATCH_SIZE,
    shuffle=True,
    drop_last=True,
    collate_fn=partial(prepare_input),
)

class TransformerEmbedding(paddle.nn.Layer):
    def __init__(self, sequence_length, vocab_size, embed_dim):
        super(TransformerEmbedding, self).__init__()
        self.token_embeddings = paddle.nn.Embedding(
            num_embeddings=vocab_size, embedding_dim=embed_dim
        )
        self.position_embeddings = self.get_position_embedding(
            sequence_length, embed_dim
        )

    def forward(self, inputs):
        seq_len = inputs.shape[1]
        embedded_tokens = self.token_embeddings(inputs)
        embedded_positions = self.position_embeddings
        return embedded_tokens + embedded_positions[:, :seq_len, :]

    def compute_mask(self, inputs, mask=None):
        return paddle.not_equal(inputs, 0)

    def get_angles(self, pos, i, d_model):
        angle_rate = 1 / np.power(10000, (2 * (i // 2)) / np.float32(d_model))
        return pos * angle_rate

    def get_position_embedding(self, sentence_length, d_model):
        angle_rads = self.get_angles(
            np.arange(sentence_length)[:, np.newaxis],
            np.arange(d_model)[np.newaxis, :],
            d_model,
        )
        sines = np.sin(angle_rads[:, 0::2])
        cosines = np.cos(angle_rads[:, 1::2])

        position_embedding = np.concatenate([sines, cosines], axis=-1)
        position_embedding = paddle.to_tensor(
            position_embedding[np.newaxis, ...]
        )

        return paddle.cast(position_embedding, dtype="float32")

class TransformerEncoder(paddle.nn.Layer):
    def __init__(self, embed_dim, dense_dim, num_heads):
        super(TransformerEncoder, self).__init__()
        self.embed_dim = embed_dim
        self.dense_dim = dense_dim
        self.num_heads = num_heads
        self.attention = paddle.nn.MultiHeadAttention(
            num_heads=num_heads, embed_dim=embed_dim, dropout=0.1
        )

        self.dense_proj = paddle.nn.Sequential(
            paddle.nn.Linear(embed_dim, dense_dim),
            paddle.nn.ReLU(),
            paddle.nn.Linear(dense_dim, embed_dim),
        )

        self.layernorm_1 = paddle.nn.LayerNorm(embed_dim)
        self.layernorm_2 = paddle.nn.LayerNorm(embed_dim)

    def forward(self, inputs):
        attention_output = self.attention(
            query=inputs, value=inputs, key=inputs
        )
        proj_input = self.layernorm_1(inputs + attention_output)
        proj_output = self.dense_proj(proj_input)
        return self.layernorm_2(proj_input + proj_output)

class TransformerDecoder(paddle.nn.Layer):
    def __init__(self, embed_dim, latent_dim, num_heads):
        super(TransformerDecoder, self).__init__()
        self.embed_dim = embed_dim
        self.latent_dim = latent_dim
        self.num_heads = num_heads
        self.attention_1 = paddle.nn.MultiHeadAttention(
            num_heads=num_heads, embed_dim=embed_dim
        )

        self.attention_2 = paddle.nn.MultiHeadAttention(
            num_heads=num_heads, embed_dim=embed_dim
        )

        self.dense_proj = paddle.nn.Sequential(
            paddle.nn.Linear(embed_dim, latent_dim),
            paddle.nn.ReLU(),
            paddle.nn.Linear(latent_dim, embed_dim),
        )

        self.layernorm_1 = paddle.nn.LayerNorm(embed_dim)
        self.layernorm_2 = paddle.nn.LayerNorm(embed_dim)
        self.layernorm_3 = paddle.nn.LayerNorm(embed_dim)

    def forward(self, inputs, encoder_outputs):
        # [batch_size, equence_length, sequence_length]
        causal_mask = self.get_causal_attention_mask(inputs)

        # attn_mask: [batch_size, n_head, sequence_length, sequence_length]
        attention_output_1 = self.attention_1(
            query=inputs, value=inputs, key=inputs, attn_mask=causal_mask
        )
        out_1 = self.layernorm_1(inputs + attention_output_1)

        attention_output_2 = self.attention_2(
            query=out_1, value=encoder_outputs, key=encoder_outputs
        )
        out_2 = self.layernorm_2(out_1 + attention_output_2)

        proj_output = self.dense_proj(out_2)
        return self.layernorm_3(out_2 + proj_output)

    def get_causal_attention_mask(self, inputs):
        input_shape = inputs.shape
        batch_size, sequence_length = input_shape[0], input_shape[1]
        i = paddle.arange(sequence_length)[:, np.newaxis]
        j = paddle.arange(sequence_length)
        # [sequence_length, sequence_length]
        mask = paddle.cast(i >= j, dtype="int32")
        # [1, equence_length, sequence_length]
        mask = paddle.reshape(mask, (1, 1, input_shape[1], input_shape[1]))
        mult = paddle.concat(
            [
                paddle.to_tensor(64, dtype="int32"),
                paddle.to_tensor([1, 1, 1], dtype="int32"),
            ],
            axis=0,
        )  # [batch_size,1,1]
        # [batch_size, equence_length, sequence_length]
        return paddle.tile(mask, mult)

class Transformer(paddle.nn.Layer):
    def __init__(
        self, embed_dim, latent_dim, num_heads, sequence_length, vocab_size
    ):
        super(Transformer, self).__init__()

        self.ps1 = TransformerEmbedding(sequence_length, vocab_size, embed_dim)
        self.encoder = TransformerEncoder(embed_dim, latent_dim, num_heads)

        self.ps2 = TransformerEmbedding(sequence_length, vocab_size, embed_dim)
        self.decoder = TransformerDecoder(embed_dim, latent_dim, num_heads)

        self.drop = paddle.nn.Dropout(p=0.5)
        self.lastLinear = paddle.nn.Linear(embed_dim, vocab_size)

    def forward(self, encoder_inputs, decoder_inputs):
        # 编码器
        encoder_emb = self.ps1(encoder_inputs)
        encoder_outputs = self.encoder(encoder_emb)

        # 解码器
        deocder_emb = self.ps2(decoder_inputs)
        decoder_outputs = self.decoder(deocder_emb, encoder_outputs)

        # dropout
        out = self.drop(decoder_outputs)

        # 最后输出
        out = self.lastLinear(out)

        return out


trans = Transformer(
    embed_dim, latent_dim, num_heads, sequence_length, vocab_size
)
paddle.summary(trans, input_size=[(64, 20), (64, 20)], dtypes="int32")

--------------------------------------------------------------------------------------------
     Layer (type)               Input Shape               Output Shape         Param #
============================================================================================
     Embedding-5                 [[64, 20]]              [64, 20, 256]        6,400,000
TransformerEmbedding-5           [[64, 20]]              [64, 20, 256]            0
      Linear-35               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-36               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-37               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-38               [[64, 20, 256]]            [64, 20, 256]         65,792
 MultiHeadAttention-7                []                  [64, 20, 256]            0
     LayerNorm-11             [[64, 20, 256]]            [64, 20, 256]           512
      Linear-39               [[64, 20, 256]]            [64, 20, 2048]        526,336
        ReLU-5                [[64, 20, 2048]]           [64, 20, 2048]           0
      Linear-40               [[64, 20, 2048]]           [64, 20, 256]         524,544
     LayerNorm-12             [[64, 20, 256]]            [64, 20, 256]           512
 TransformerEncoder-3         [[64, 20, 256]]            [64, 20, 256]            0
     Embedding-6                 [[64, 20]]              [64, 20, 256]        6,400,000
TransformerEmbedding-6           [[64, 20]]              [64, 20, 256]            0
      Linear-41               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-42               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-43               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-44               [[64, 20, 256]]            [64, 20, 256]         65,792
 MultiHeadAttention-8                []                  [64, 20, 256]            0
     LayerNorm-13             [[64, 20, 256]]            [64, 20, 256]           512
      Linear-45               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-46               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-47               [[64, 20, 256]]            [64, 20, 256]         65,792
      Linear-48               [[64, 20, 256]]            [64, 20, 256]         65,792
 MultiHeadAttention-9                []                  [64, 20, 256]            0
     LayerNorm-14             [[64, 20, 256]]            [64, 20, 256]           512
      Linear-49               [[64, 20, 256]]            [64, 20, 2048]        526,336
        ReLU-6                [[64, 20, 2048]]           [64, 20, 2048]           0
      Linear-50               [[64, 20, 2048]]           [64, 20, 256]         524,544
     LayerNorm-15             [[64, 20, 256]]            [64, 20, 256]           512
 TransformerDecoder-3  [[64, 20, 256], [64, 20, 256]]    [64, 20, 256]            0
      Dropout-3               [[64, 20, 256]]            [64, 20, 256]            0
      Linear-51               [[64, 20, 256]]           [64, 20, 25000]       6,425,000
============================================================================================
Total params: 22,118,824
Trainable params: 22,118,824
Non-trainable params: 0
--------------------------------------------------------------------------------------------
Input size (MB): 0.01
Forward/backward pass size (MB): 396.64
Params size (MB): 84.38
Estimated Total Size (MB): 481.03
--------------------------------------------------------------------------------------------






{'total_params': 22118824, 'trainable_params': 22118824}

class CrossEntropy(paddle.nn.Layer):
    def __init__(self):
        super(CrossEntropy, self).__init__()

    def forward(self, pre, real, trg_mask):
        # 返回的数据类型与pre一致，除了axis维度(未指定则为-1)，其他维度也与pre一致
        # logits=pre,[batch_size,sequence_len,word_size],猜测会进行argmax操作，[batch_size,sequence_len,1]
        # 默认的soft_label为False，lable=real,[bacth_size,sequence_len,1]
        cost = paddle.nn.functional.softmax_with_cross_entropy(
            logits=pre, label=real, soft_label=False
        )

        # 删除axis=2 shape上为1的维度
        # 返回结果的形状应为 [batch_size,sequence_len]
        cost = paddle.squeeze(cost, axis=[2])

        # trg_mask 的形状[batch_size,suqence_len]
        # * 这个星号应该是对应位置相乘，返回结果的形状 [bathc_szie,sequence_len]
        masked_cost = cost * trg_mask

        return paddle.mean(masked_cost)

epochs = 100
trans = Transformer(
    embed_dim, latent_dim, num_heads, sequence_length, vocab_size
)
model = paddle.Model(trans)

scheduler = paddle.optimizer.lr.NoamDecay(
    d_model=latent_dim, warmup_steps=100, verbose=False
)  # 动态调整学习率
model.prepare(
    optimizer=paddle.optimizer.Adam(
        learning_rate=scheduler, parameters=model.parameters()
    ),
    loss=CrossEntropy(),
    metrics=paddle.metric.Accuracy(),
)

model.fit(
    train_data=train_loader,
    epochs=epochs,
    eval_data=val_loader,
    verbose=2,
    save_dir="./savemodel",
    save_freq=10,
    log_freq=100,
    callbacks=[paddle.callbacks.VisualDL("./log")],
)
