通过OCR实现验证码识别¶

# 下载数据集
!wget -O OCR_Dataset.zip https://bj.bcebos.com/v1/ai-studio-online/c91f50ef72de43b090298a38281e9c59a2d741eadd334f1cba7c710c5496e342?responseContentDisposition=attachment%3B%20filename%3DOCR_Dataset.zip&authorization=bce-auth-v1%2F0ef6765c1e494918bc0d4c3ca3e5c6d1%2F2020-10-27T09%3A50%3A21Z%2F-1%2F%2Fddc4aebed803af6c57dac46abba42d207961b78e7bc81744e8388395979b66fa

# 解压数据集
!unzip OCR_Dataset.zip -d data/

import os

import PIL.Image as Image
import numpy as np
from paddle.io import Dataset

# 图片信息配置 - 通道数、高度、宽度
IMAGE_SHAPE_C = 3
IMAGE_SHAPE_H = 30
IMAGE_SHAPE_W = 70
# 数据集图片中标签长度最大值设置 - 因图片中均为4个字符，故该处填写为4即可
LABEL_MAX_LEN = 4


class Reader(Dataset):
    def __init__(self, data_path: str, is_val: bool = False):
        """
        数据读取Reader
        :param data_path: Dataset路径
        :param is_val: 是否为验证集
        """
        super().__init__()
        self.data_path = data_path
        # 读取Label字典
        with open(
            os.path.join(self.data_path, "label_dict.txt"),
            "r",
            encoding="utf-8",
        ) as f:
            self.info = eval(f.read())
        # 获取文件名列表
        self.img_paths = [img_name for img_name in self.info]
        # 将数据集后1024张图片设置为验证集，当is_val为真时img_path切换为后1024张
        self.img_paths = (
            self.img_paths[-1024:] if is_val else self.img_paths[:-1024]
        )

    def __getitem__(self, index):
        # 获取第index个文件的文件名以及其所在路径
        file_name = self.img_paths[index]
        file_path = os.path.join(self.data_path, file_name)
        # 捕获异常 - 在发生异常时终止训练
        try:
            # 使用Pillow来读取图像数据
            img = Image.open(file_path)
            # 转为Numpy的array格式并整体除以255进行归一化
            img = (
                np.array(img, dtype="float32").reshape(
                    (IMAGE_SHAPE_C, IMAGE_SHAPE_H, IMAGE_SHAPE_W)
                )
                / 255
            )
        except Exception as e:
            raise Exception(
                file_name
                + "\t文件打开失败，请检查路径是否准确以及图像文件完整性，报错信息如下:\n"
                + str(e)
            )
        # 读取该图像文件对应的Label字符串，并进行处理
        label = self.info[file_name]
        label = list(label)
        # 将label转化为Numpy的array格式
        label = np.array(label, dtype="int32")

        return img, label

    def __len__(self):
        # 返回每个Epoch中图片数量
        return len(self.img_paths)

import paddle

# 分类数量设置 - 因数据集中共包含0~9共10种数字+分隔符，所以是11分类任务
CLASSIFY_NUM = 11

# 定义输入层，shape中第0维使用-1则可以在预测时自由调节batch size
input_define = paddle.static.InputSpec(
    shape=[-1, IMAGE_SHAPE_C, IMAGE_SHAPE_H, IMAGE_SHAPE_W],
    dtype="float32",
    name="img",
)


# 定义网络结构
class Net(paddle.nn.Layer):
    def __init__(self, is_infer: bool = False):
        super().__init__()
        self.is_infer = is_infer

        # 定义一层3x3卷积+BatchNorm
        self.conv1 = paddle.nn.Conv2D(
            in_channels=IMAGE_SHAPE_C, out_channels=32, kernel_size=3
        )
        self.bn1 = paddle.nn.BatchNorm2D(32)
        # 定义一层步长为2的3x3卷积进行下采样+BatchNorm
        self.conv2 = paddle.nn.Conv2D(
            in_channels=32, out_channels=64, kernel_size=3, stride=2
        )
        self.bn2 = paddle.nn.BatchNorm2D(64)
        # 定义一层1x1卷积压缩通道数，输出通道数设置为比LABEL_MAX_LEN稍大的定值可获取更优效果，当然也可设置为LABEL_MAX_LEN
        self.conv3 = paddle.nn.Conv2D(
            in_channels=64, out_channels=LABEL_MAX_LEN + 4, kernel_size=1
        )
        # 定义全连接层，压缩并提取特征（可选）
        self.linear = paddle.nn.Linear(in_features=429, out_features=128)
        # 定义RNN层来更好提取序列特征，此处为双向LSTM输出为2 x hidden_size，可尝试换成GRU等RNN结构
        self.lstm = paddle.nn.LSTM(
            input_size=128, hidden_size=64, direction="bidirectional"
        )
        # 定义输出层，输出大小为分类数
        self.linear2 = paddle.nn.Linear(
            in_features=64 * 2, out_features=CLASSIFY_NUM
        )

    def forward(self, ipt):
        # 卷积 + ReLU + BN
        x = self.conv1(ipt)
        x = paddle.nn.functional.relu(x)
        x = self.bn1(x)
        # 卷积 + ReLU + BN
        x = self.conv2(x)
        x = paddle.nn.functional.relu(x)
        x = self.bn2(x)
        # 卷积 + ReLU
        x = self.conv3(x)
        x = paddle.nn.functional.relu(x)
        # 将3维特征转换为2维特征 - 此处可以使用reshape代替
        x = paddle.tensor.flatten(x, 2)
        # 全连接 + ReLU
        x = self.linear(x)
        x = paddle.nn.functional.relu(x)
        # 双向LSTM - [0]代表取双向结果，[1][0]代表forward结果,[1][1]代表backward结果，详细说明可在官方文档中搜索'LSTM'
        x = self.lstm(x)[0]
        # 输出层 - Shape = (Batch Size, Max label len, Signal)
        x = self.linear2(x)

        # 在计算损失时ctc-loss会自动进行softmax，所以在预测模式中需额外做softmax获取标签概率
        if self.is_infer:
            # 输出层 - Shape = (Batch Size, Max label len, Prob)
            x = paddle.nn.functional.softmax(x)
            # 转换为标签
            x = paddle.argmax(x, axis=-1)
        return x

# 数据集路径设置
DATA_PATH = "./data/OCR_Dataset"
# 训练轮数
EPOCH = 10
# 每批次数据大小
BATCH_SIZE = 16

label_define = paddle.static.InputSpec(
    shape=[-1, LABEL_MAX_LEN], dtype="int32", name="label"
)

class CTCLoss(paddle.nn.Layer):
    def __init__(self):
        """
        定义CTCLoss
        """
        super().__init__()

    def forward(self, ipt, label):
        input_lengths = paddle.full(
            shape=[BATCH_SIZE], fill_value=LABEL_MAX_LEN + 4, dtype="int64"
        )
        label_lengths = paddle.full(
            shape=[BATCH_SIZE], fill_value=LABEL_MAX_LEN, dtype="int64"
        )
        # 按文档要求进行转换dim顺序
        ipt = paddle.tensor.transpose(ipt, [1, 0, 2])
        # 计算loss
        loss = paddle.nn.functional.ctc_loss(
            ipt, label, input_lengths, label_lengths, blank=10
        )
        return loss

# 实例化模型
model = paddle.Model(Net(), inputs=input_define, labels=label_define)

# 定义优化器
optimizer = paddle.optimizer.Adam(
    learning_rate=0.0001, parameters=model.parameters()
)

# 为模型配置运行环境并设置该优化策略
model.prepare(optimizer=optimizer, loss=CTCLoss())

# 与训练近似，但不包含Label
class InferReader(Dataset):
    def __init__(self, dir_path=None, img_path=None):
        """
        数据读取Reader(预测)
        :param dir_path: 预测对应文件夹（二选一）
        :param img_path: 预测单张图片（二选一）
        """
        super().__init__()
        if dir_path:
            # 获取文件夹中所有图片路径
            self.img_names = [
                i
                for i in os.listdir(dir_path)
                if os.path.splitext(i)[1] == ".jpg"
            ]
            self.img_paths = [os.path.join(dir_path, i) for i in self.img_names]
        elif img_path:
            self.img_names = [os.path.split(img_path)[1]]
            self.img_paths = [img_path]
        else:
            raise Exception("请指定需要预测的文件夹或对应图片路径")

    def get_names(self):
        """
        获取预测文件名顺序
        """
        return self.img_names

    def __getitem__(self, index):
        # 获取图像路径
        file_path = self.img_paths[index]
        # 使用Pillow来读取图像数据并转成Numpy格式
        img = Image.open(file_path)
        img = (
            np.array(img, dtype="float32").reshape(
                (IMAGE_SHAPE_C, IMAGE_SHAPE_H, IMAGE_SHAPE_W)
            )
            / 255
        )
        return img

    def __len__(self):
        return len(self.img_paths)

# 待预测目录 - 可在测试数据集中挑出\b3张图像放在该目录中进行推理
INFER_DATA_PATH = "./sample_img"
# 训练后存档点路径 - final 代表最终训练所得模型
CHECKPOINT_PATH = "./output/final.pdparams"
# 每批次处理数量
BATCH_SIZE = 32

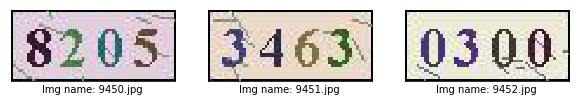

import matplotlib.pyplot as plt

plt.figure(figsize=(10, 10))
sample_idxs = np.random.choice(50000, size=25, replace=False)

for img_id, img_name in enumerate(os.listdir(INFER_DATA_PATH)):
    plt.subplot(1, 3, img_id + 1)
    plt.xticks([])
    plt.yticks([])
    im = Image.open(os.path.join(INFER_DATA_PATH, img_name))
    plt.imshow(im, cmap=plt.cm.binary)
    plt.xlabel("Img name: " + img_name)
plt.show()
